BluBlock AR Coatings

Steve Mower - Updated April 3, 2021

Anti-Reflective Coatings (AR)

Better Optical Quality and Appearance

All quality lenses whether in telescopes, binoculars, and your smart phone's camera, have an anti-reflective coating.

  • Anti-Reflective (AR) Coatings, or "Non-Glare" coatings are designed to increase the optical quality of lenses by "pulling" more light through the lenses.
  • A lens without AR will typically reflect off about 20% of the light hitting it.
  • For eyeglass lenses this can look unsightly as people can see a lot of reflections off the front surface of the lenses.
  • AR coated lenses look almost totally clear with no reflections.

How do you know if a lens has an AR coating?

  • If you look at the lens straight on it will look very clear.
  • Held to a slight angle you will see a shimmer of color. The color can be a mix of blue, green, yellow, purple depending on the combinations of minerals used in the AR stack.
  • An AR stack is is the multiple layers of coatings that "pull" the light through the lens.
  • Different manufacturers have their own AR stacks.
  • High quality AR coatings also have other layers of coatings that make the lenses more scratch resistant, block more UV, and make the lenses less easy to smudge and easier to clean (hydrophobic coatings).

Non-AR Coated Lens vs. AR Coated Lens



ANTI-REFLECTIVE LENS TYPES

Standard AR Diagram

Standard AR Coatings

  • Pull over 99.95% of light through the lens to your eyes.
  • Cosmetics: Lenses are very clear with no surface glare.

Lenses: Mojo Standard AR

BluBlock AR Coating Diagram

BluBlock AR Coatings

  • Specially designed to reflect off a percentage of blue light before entering the lens.
  • Allows beneficial blue light through to your eyes.
  • Reduces reflections and unwanted glare.
  • Cosmetics: A blue flash off the front surface of the lenses can be seen. This is blue light being reflected off.

Lenses: Mojo BluBlock AR, Apex BluBlock AR-T, Crizal Prevencia AR

 Blue Filter Lens with Standard AR Diagram

Blue Filter Lenses with Standard AR Coatings

  • Lenses have a blue filter monomer which filters a percentage of HEV Blue Light.
  • Standard AR Coating does not reflect off blue light.
  • Allows beneficial blue light through to your eyes.
  • Reduces reflections and unwanted glare.
  • Cosmetics: No blue flash off the front surface of the lenses can be seen.
  • Great for video meetings.

Lenses: Mojo BluFilter with Standard AR, Crizal Rock

 Blue Filter and BluBlock AR Diagram

Blue Filter Lenses with BluBlock AR Coatings (Hybrid)

  • Lenses have a blue filter monomer which filters a percentage of HEV Blue Light.
  • BluBlock AR Coating reflects off blue light.
  • Allows beneficial blue light through to your eyes.
  • Reduces reflections and unwanted glare.
  • Cosmetics: Blue flash off the front surface of the lenses can be seen.
  • Provides superior blue light protection.

Lenses: Zenspex 1.6 BluBlock AR, Kodak Total Blue 1.6 AR

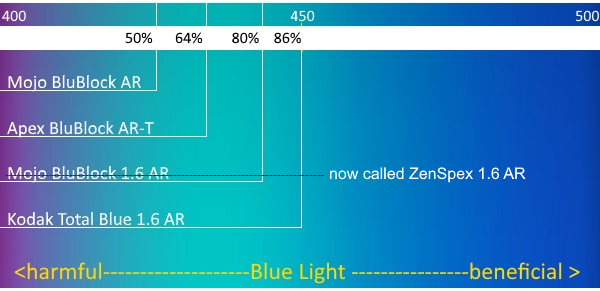

Go here to see a video showing the relative effectiveness of these blublock lens types.

Blue light reflected of of BluBlock AR Coatings can seen:

blue light reflected off at angle

Our Lenses with AR Coatings

AR LENS NAME

 ~TOTAL HEV

BLUE FLASH

   OPTION $

Mojo BluBlock AR ~25% YES $15
Apex BluBlock AR-T ~33% YES $20
Zenspex BluBlock 1.6 AR ~80% YES $50
Kodak Total Blue 1.6 AR ~87% YES $80
Mojo BluFilter Standard  AR ~20% NO $50
Crizal Rock (Blue Capture) AR >20% NO $100
Mojo STD (Standard) AR 0.0% NO $15

OUR LENS SPECIFICATIONS:

Mojo BluBlock AR Coating - (Clear AR)

Lens Add-On $15.00 (Over $139.00 in optical stores!)

Features and Benefits:

  • Reflects off 25% HEV Blue Light.
  • Reduces glare and reflections while providing natural vision without color distortion.
  • Hydrophobic, easy to clean top coating provides durability and smudge less than regular AR coatings.
  • Our BluBlock AR multi-layer coatings are molecularly bonded to the lens surface.
  • Appearance is clear, with no tint. AR has a very slight yellow cast.
  • Lenses are spherical polycarbonate.

Availability: All frame styles in Reader Lenses and Single Vision Prescription Lenses

APEX BluBlock AR-T Coating - (Clear AR + Lens Tint)

Lens Add-On $20.00 (Over $149.00/pair in optical stores!)

Features and Benefits:

  • Includes a very light 1% Amber Blue Block Tint for additional contrast.
  • Reflects off ~33% of HEV Blue Light.
  • Reduces glare and reflections while providing natural vision without color distortion with added contrast.
  • Hydrophobic, easy to clean top coating provides durability and smudge less than regular AR coatings.
  • Our BluBlock AR multi-layer coatings are molecularly bonded to the lens surface. Beware of cheap imitations!
  • Appearance is clear, with a very light amber tint. AR has a very slight blue cast.
  • Lenses are aspheric polycarbonate.

Availability: All frame styles in Reader Lenses and Single Vision Prescription Lenses

Kodak Total Blue 1.6AR - (Clear. Hybrid AR + Lens Material)

ZenSpex 1.6 AR - (Clear. Hybrid AR + Lens Material)

Lens Add-On $50.00 to $80.00 (These lenses retail for well over $230.00/pair in optical stores!)

Features and Benefits:

  • Kodak Total Blue 1.6AR lenses are a hybrid of a special high index lens material and AR coating developed by Kodak that filters and reflects >87% of blue light/HEV. These lenses are the most effective blue block AR lenses we have tested.
  • ZenSpex 1.6 AR lenses are a hybrid of a special high index lens material and AR coatings very similar to the Kodak lenses. These lenses filter and reflect over 80% of blue light/HEV.
  • BOTH - Filter 100% UV Light.
  • BOTH - Reduce glare and reflections while providing natural vision without color distortion with added contrast.
  • BOTH - Have  a hydrophobic, easy to clean top coating provides durability and smudge less than regular AR coatings.
  • BOTH - AR coatings are molecularly bonded to the lens surface.
  • BOTH - Appearance is clear. AR has a very slight blue cast.
  • BOTH - 1.6 high index lenses are 20% thinner than polycarbonate.
  • ZenSpex 1.6 AR is available as a lens option on all of our single vision reading glasses for $50.00 except for rimless and semi-rimless styles because of their thinness. They have a one year warranty against scratching.
  • Kodak Total Blue 1.6AR is available as a lens option on all of our single vision reading glasses for $80.00 except for rimless and semi-rimless styles because of their thinness. They have a one year warranty against scratching.

Availability: All full-rim frame styles in Reader Lenses and Single Vision Prescription Lenses

Crizal Rock (Blue Capture) AR - HEV Blue Filter with Standard AR - Ultra Scratch Resistance

Lens Add-On $100.00 (Over $300.00 in optical stores!)

Features and Benefits:

  • Filters at least 20% HEV Blue Light through 455nm.
  • Reduces glare and reflections while providing natural vision without color distortion.
  • No blue light flash reflections! Great for Zoom meetings.
  • Hydrophobic, easy to clean top coating provides durability and smudge less than regular AR coatings.
  • Crizal Rock AR is a multi-layer coating that is molecularly bonded to the lens surface.
  • Appearance is clear, with no tint. AR is clear.
  • Available as a lens option on all of our single vision reading glasses and prescription lenses.
  • Lenses are aspheric polycarbonate.
  • Crizal Rock Lenses ate the most scratch resistant AR lens made!

Availability: All frame styles in Reader Lenses and Single Vision Prescription Lenses

Mojo BluFilter Standard AR - HEV Blue Filter with Standard AR

Lens Add-On $50.00 (Over $200.00 in optical stores!)

Features and Benefits:

  • Filters at least 20% HEV Blue Light through 455nm.
  • Reduces glare and reflections while providing natural vision without color distortion.
  • No blue light flash reflections! Great for Zoom meetings.
  • Hydrophobic, easy to clean top coating provides durability and smudge less than regular AR coatings.
  • Multi-layer coating that is molecularly bonded to the lens surface.
  • Appearance is clear, with no tint. AR is clear.
  • Available as a lens option on all of our single vision reading glasses and prescription lenses.
  • Lenses are aspheric polycarbonate.

Availability: All frame styles in Reader Lenses and Single Vision Prescription Lenses

Mojo 1.67 UV420 BluBlock AR (Clear. Hybrid AR + Lens Material)

$100.00 Lens Add-on. These lenses have exactly the same features as Kodak Total Blue 1.6 AR but are 1.67 index so slightly thinner in minus powers. We offer them as a lens option for prescription only. They come in a wider power range than the Kodak lenses do. They have a one year warranty against scratching.

Read our BluBlock Guide for help in selecting the right blue block option option for you.









Steve Mower is a licensed dispensing Optician and creator of Mojo BluBlock Tints. Steve has over 30 years experience in the optical field. He has been a optical retail manager and has consulted on progressive lens development. Steve has been offering unique reading glasses solutions on-line since 2010. Steve is a member of Opticians Association of Virginia and Opticians Association of America.
